GSM device Edit

Intro4

GSM for “Global System for Mobile Communications” is a standard used all over the world for wireless communication. It is the only system used practically everywhere and at many places exclusively, but is competing with different systems (like CDMA) in America and Asia.

GSM-based devices identify the user by a detachable smartcard called SIM (for “Subscriber Identity Module”). This can be taken out of the device and be replaced by a different SIM card issued by another provider. As only GSM-technology gives worldwide coverage and the choice of swapping SIM cards, this WIKI is based on GSM and providers listed are mostly GSM providers.

4G/LTE is started to be employed by CDMA-providers too, bridging this gap. They give out GSM- or at least LTE-enabled devices. That's why we have started to support some other providers too.

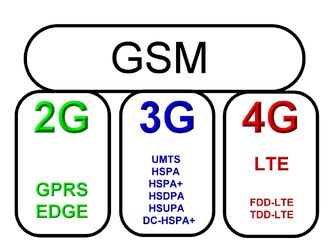

Progress has come in generations with GSM. It started with voice transmission, was later added by text (SMS), pictures (MMS) and data (GPRS).

2g

2G (GPRS, EDGE) Edit

Modern GSM-technology started with 2G for 2nd generation in the 1990s. It has data rates with a max. of 50 kbit/s  called GPRS, later to be accelerated to about 500 kbit/s which is called EDGE.

This is sufficient for the most basic data requirements like messaging, WAP or mobile websites, but too slow for “surfing” desktop websites. Nevertheless, it’s still the backbone of data transmission in rural areas or developing countries where networks are not that advanced.

3g-0

3G (UMTS, HSPA, HSPA+, HSDPA, HSUPS, DC-HSPA+) Edit

The 3rd generation or UMTS started with the new millennium and higher data rates. This was soon to be added by technologies like HSPA, HSPA+, HSDPA, HSUPA and dual-carriers (DC-) for even more speed. Thus theoretical speeds of some hundred Mbit/s can be reached coming down to some Mbit/s in practice.

These speeds are fine for “surfing” all kinds of websites and many data needs, but there is growing congestion slowing down the speed and high-volume data like downloads take time or are impossible like video streaming. Not using that, you may feel fine on 2G and 3G which are still the only mobile options in many areas.

4g

4G (LTE, FDD-LTE, TDD-LTE, LTE Advanced, LTE+) Edit

4G has arrived before it was really here. Some operators called their “3.5G” or “3.99G” networks “4G”. In this WIKI only LTE is called 4G not to confuse any further. With the arrival of LTE some years ago, unprecedented speeds of double or even triple digit Mbit/s can be reached in practice.

LTE is the state of art of wireless data transmission so far. High-volume data can be sent or received very fast even topping many landline ADSL-providers. The deployment of LTE networks is under way worldwide, but costs a lot of money and time. So LTE is sold in technically more advanced countries so far, often within limited areas, sometimes for a surcharge and not always on prepaid yet.

Like on 3G by carrier aggregation of two or more LTE frequencies even higher speeds can be achieved. This is often marketed as LTE Advanced, LTE+ or 4.5G.

The next generation called 5G is already technically under development and is expected to be launched comercially by the end of the decade in some countries.

Unlocked device Edit

Intro6

A SIM lock or net lock is the capability built into GSM mobile devices by providers to restrict the use to specific countries and network providers. A device sold without a SIM lock is called unlocked and the owner can insert any SIM card.

It is not uncommon that a phone purchased together with a plan is SIM-locked to that particular provider. This means that when you go abroad and try to use a foreign SIM card it simply will not work.

There are many ways to unlock your device, which can't be specified here. Generally, an unlock code from your provider is available after the initial time of your contract has run out. So take a look around the net or ask your provider or a mobile shop if and how your device can be unlocked.

Internationally, there are very different laws concerning SIM-locks and unlocking. In some countries SIM-locks are prohibited at all, in other countries unlocking of devices (within a certain time) is iilegal. For a survey of the legal situation refer to this: [[1]]

Frequencies Edit

Intro7-0

Unfortunately, different frequencies are used all over the world for 2G, 3G and 4G GSM transmissions. To avoid blackouts, check the available frequency bands of the devices you want to take with you while traveling and compare it with the frequencies available in your destination country. They are given in the introduction of each country chapter.

For specifc phone models, their frequencies are listed here: Network Compatibility of common phones. If you can't find your device, check its manual or device specification sites on the internet.

Basically, most of the countries within a region agreed on using certain frequency bands. This doesn't mean that no country differs from its neighbours. But it enables us to make a general survey of the frequencies used worldwide in MHz.

Region 2G (MHz) 3G (MHz) 4G/LTE (MHz)
Europe 900, 1800 (900), 2100 800, 1800, 2600 +
Africa 900 + 2100 + 1800 +
Middle East 900, 1800 900, 2100 1800 +
Asia 900, 1800 (!) 900, 2100 + #
Oceania 900, 1800 850, 900, 2100 #
North America: US

Mexico, Canada

850, 1900

850, 1900

700, 1700, 1900

850, 1900 +

700, 1700,

700, 1700, 1900

Caribbean 900, 1800 or

850, 1900

850, 1900 or

900, 2100

700, 1700, 1800 +
Latin America 850, 1900 or

900, 1800

850, 900

1900, 2100

700, 1700. 1800,

1900, 2600

Remarks: This table above is for orientation only, as there are many local discrepancies.

+ = other frequencies are in use in some countries by specific providers, for LTE see: [[2]]

# = very different LTE-frequencies are in use in Asia and Oceania, see: [[3]]

(!) = no 2G GSM provider in Japan and South Korea

You have to check the capability of your device in 2G, 3G and if applicable 4G seperately, if it works on the right bands. This is especially important coming from or going to America from the rest of the world as there are the biggest incompatibilities. 4G/LTE is being transmitted on more than 30 different frequency bands worldwide nowadays leading to a lot of mismatches.

For more info about the specific frequency bands used in your destination countries, check each Basics section given at the beginning of every country article.
